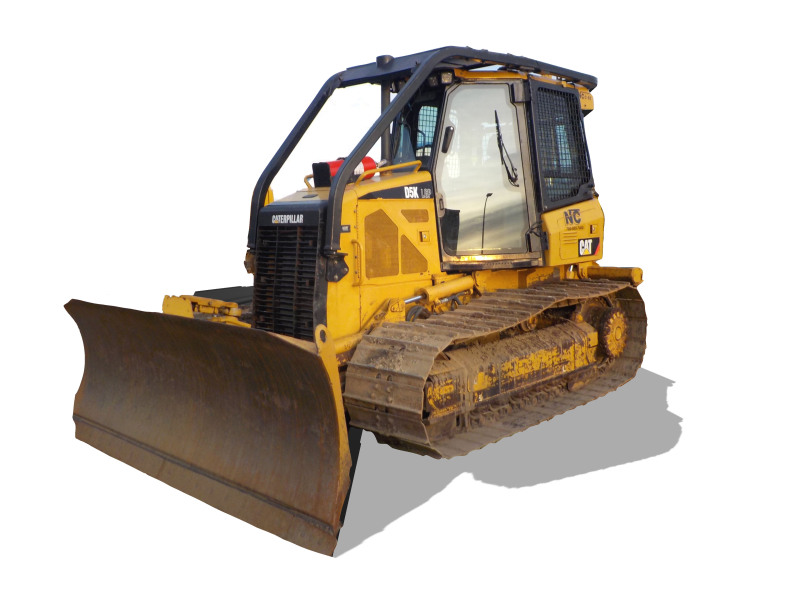

D5K LGP Caterpillar
1 IN STOCK
ENGINE MODEL - C4.4ACERT GROSS POWER - 100 hp OPERATING WEIGHT - 21 347 lb
SPECIFICATIONS
ENGINE
Engine Model Cat C4.4 ACERT
Power – Gross 100 hp
Net Power - Rated - ISO 9249 96 hp
Displacement 269 in3
Bore 4.13 in
Stroke 5 in
- Ratings at 1900 rpm.
- Net power advertised is the power available at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
- No derating required up to 3000 m altitude.
SERVICE REFILL CAPACITIES
Fuel tank 195 L
Crankcase and filter 11 L
Final drives (each side) 10 L
Cooling system 22.4 L
Transmission/hydraulic tank 59.5 L
WEIGHTS
Operating Weight 21 347 lb
-Operating with dozer blade, canopy ROPS, back-up alarm, operator, coolant, lubricants, and full fuel tank.
RIPPER
Type Parallelogram
Number of Shanks 3
Maximum Digging Depth 13.3 in
Maximum Reach at Ground Line 21.9 in
Maximum Ground Clearance Under Tip 17.6 in
Overall Width 67.3 in
Height 6.5 in
Weight 1222 lb
UNDERCARRIAGE - SALT
Number of Rollers (each side) 7
Number of Shoes (each side) 40
Shoe Width 26 in
Length of Track on Ground 91 in
Track Gauge 69 in
Ground Contact Area 4726 in2
Ground Pressure 4.52 psi
WINCH
Weight 1345 lb
Winch Drive Hydrostatic
Control Hydraulic
Speed Variable
Winch Length 27.76 in
Overall Width 29.2 in
Drum Diameter 10 in
Drum Width 10.8 in
Throat Clearance 6.75 in
Rope Diameter
Recommended 0.63 in
Optional 0.75 in
Drum Capacity
Recommended Cable 371 ft
Optional Cable 256 ft
Maximum Line Pull
Bare Drum 40 000 lb
Full Drum 25 000 lb
Maximum line speed
Bare Drum 131 ft/min
Full Drum 207 ft/min
TRANSMISSION
Drive pumps 2
Track motors 2
Relief valve settings 6911 psi
Maximum travel speed
Forward 9 km/h
Reverse 10 km/h
Hydraulic Controls
Pump output 73.5 l/min
Relief valve setting 2988 psi
- Pump output ratings at 2150 rpm and 1000 psi
DIMENSIONS
Tractor Height 9 ft 1 in
Overall Length (with blade) 14 ft 1 in
Length of Basic Tractor (without blade) 10 ft 7 in
Width of tractor (std shoes, no blade) 7 ft 9 in
Track gauge 5 ft 7 in
Blade width 10 ft 6 in
Digging Depth 1 ft 9 in
